Air Compressor Pump Motor Head,3HP 175psi V Style 2 Cylinder Air Double Stage 2 Piston 8.8CFM Air Compressor Pump Motor Head

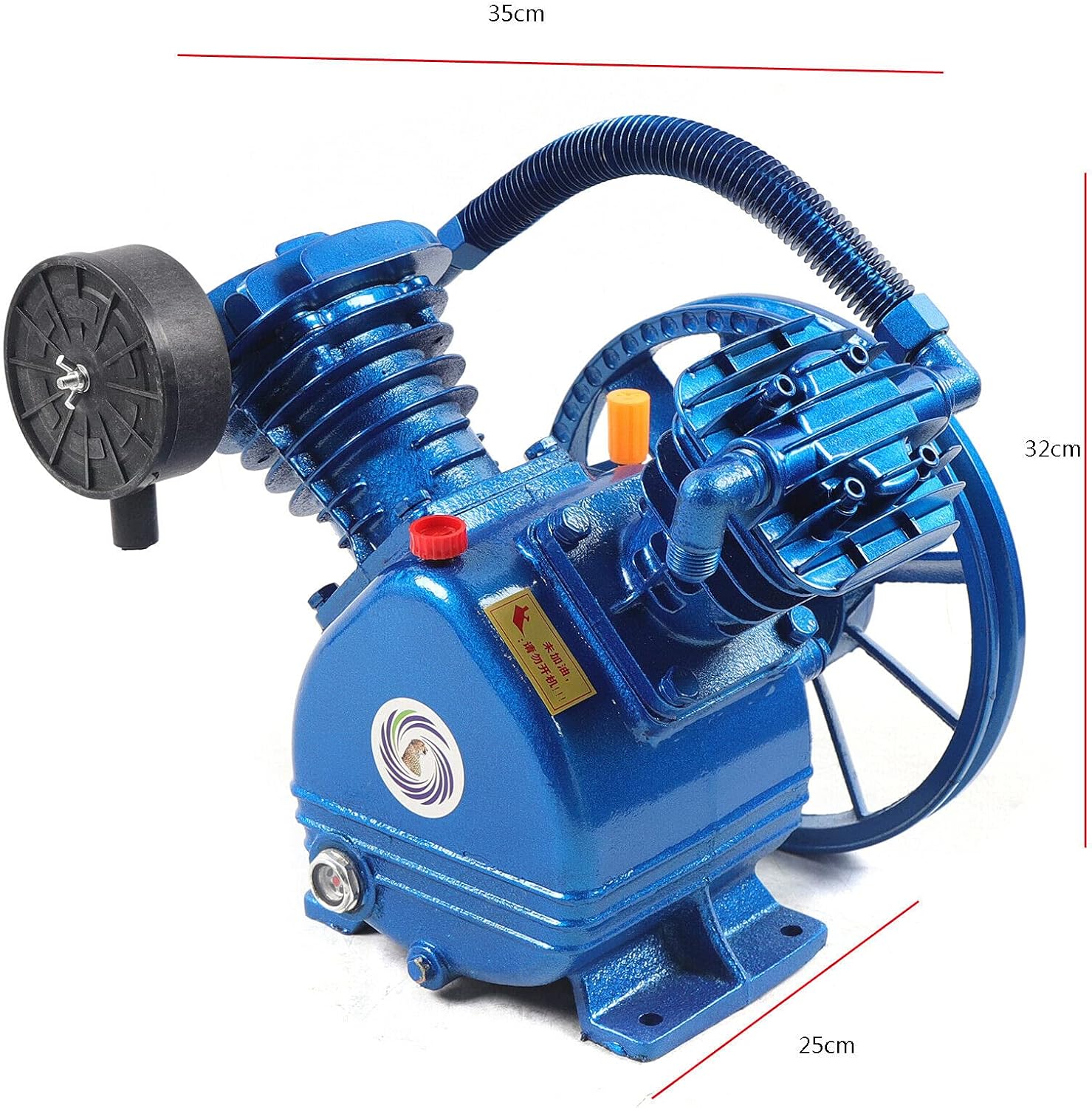

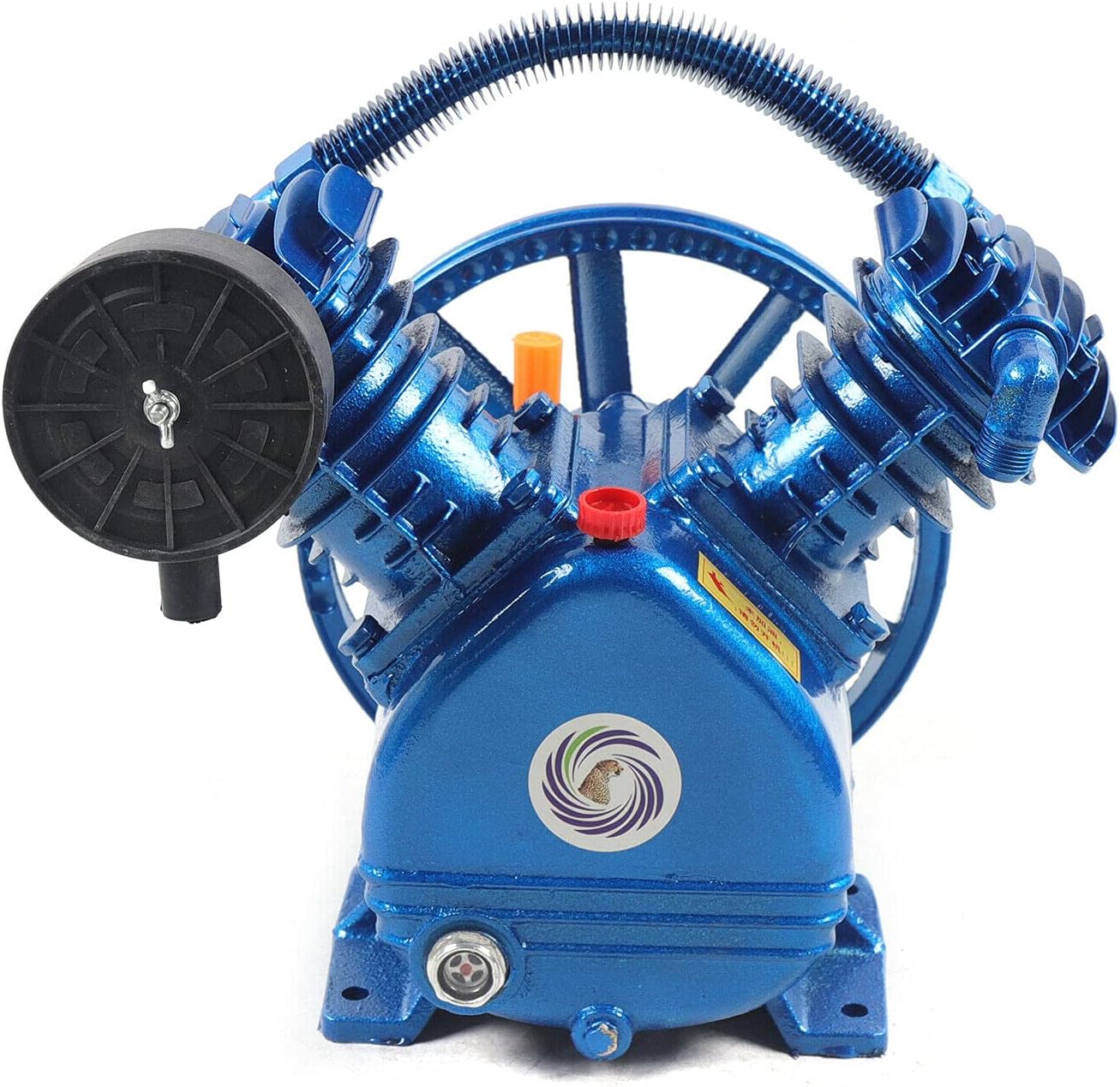

3HP 175psi V Style 2 Cylinder Air Compressor Pump Motor Head Air Double StageDescription:The pump head of this air compressor is made of aluminum cylinder head, which can supply air faster, dissipate heat quickly, not easy to damage, compact structure and lower noise. It has the characteristics of high efficiency, high precision, low energy consumption and strong versatility.Specifications:Model: V-0.25/12.5Power: 2.2KWMain wheel: 250 mm Pipe interface American: 3 / 4-16(19mm) Cylinder diameter: 65 * 1 + 51*1 mm Compression level: secondary compressionMaximum pressure: 175psi 3HPInstallation hole distance: 170 * 90mmMaterial: Cast IronProduct size: 35*25*32cmPackage size: 38 * 37 * 29 cmNet weight: 13.7kgDriving mode: PneumaticAttention:First, it should match the motor powerSecond, the head and motor pulley must be kept in a straight line to avoid bearing displacementThird, before using a new machine, you must add oil first. Change the oil for half a month for the first time, one and a half months for the second time, and change the oil for the next four to five months. Pay attention to observation at ordinary times. If it is not enough, replenish it in time. Keep the oil level in the middle of the red spot of the oil mirrorFourth, the pump head will produce high temperature in the process of operation, do not touchPacking List:1 x Air compressor pump head

• ☛Suction and Exhaust Valve Design: the hair piece is made of special valve steel with excellent strength and toughness at high temperature.

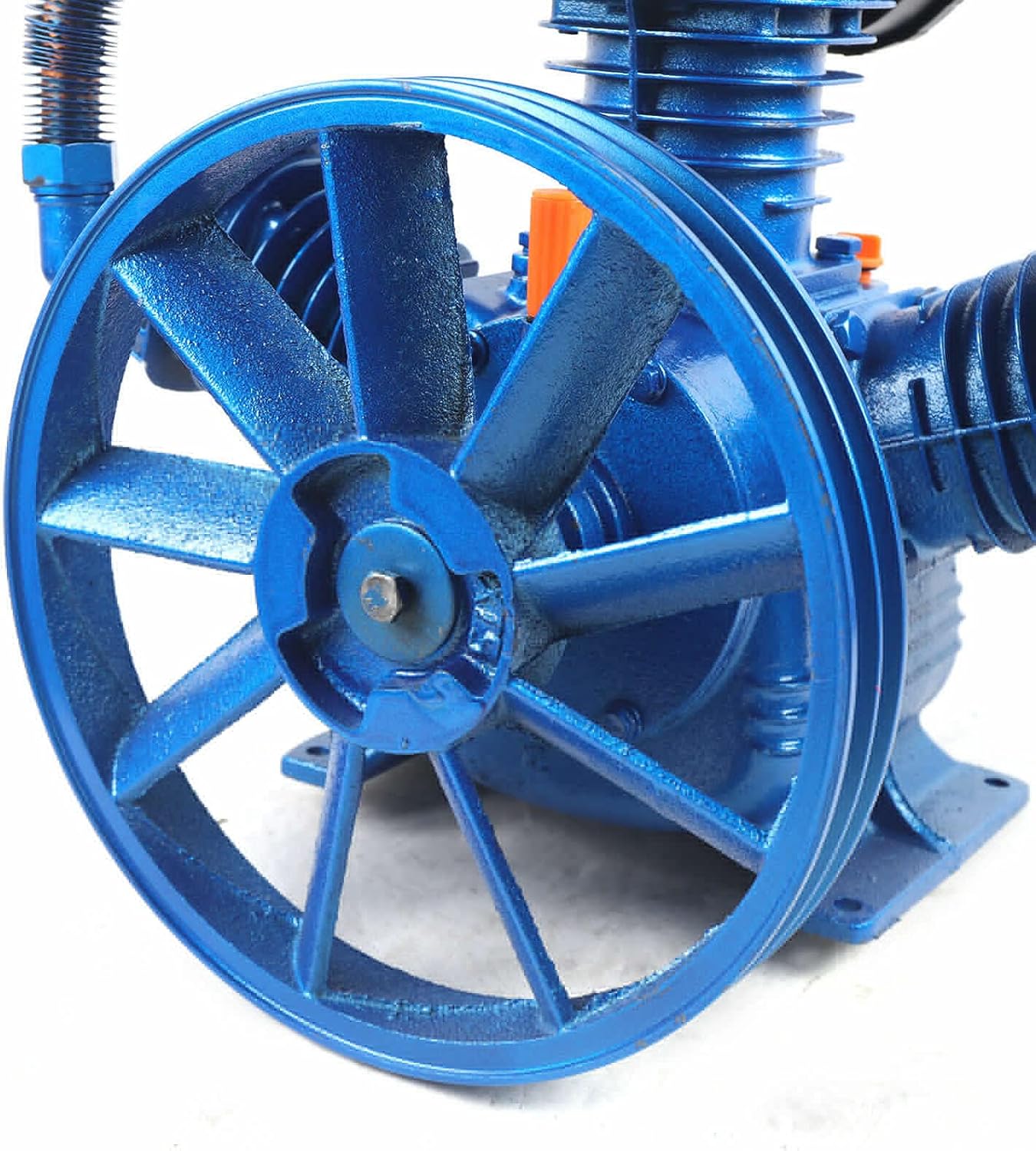

• ☛Host Belt Design: strict balance support correction, to ensure the host running balance, strong cooling blade, better heat dissipation.
• ☛It has the characteristics of high efficiency, high precision, low energy consumption and strong versatility.
• ☛Packing List:1 x Air compressor pump head
