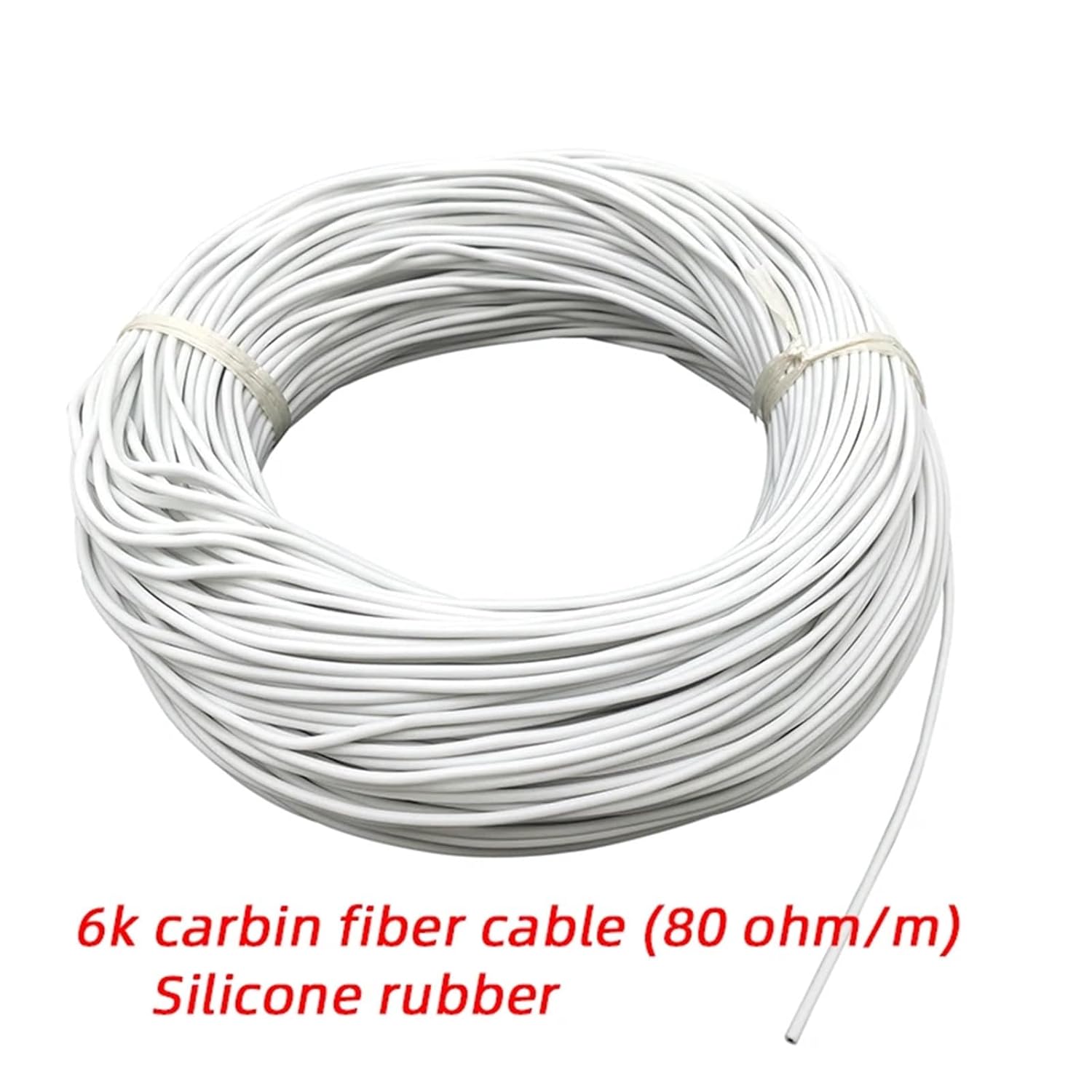

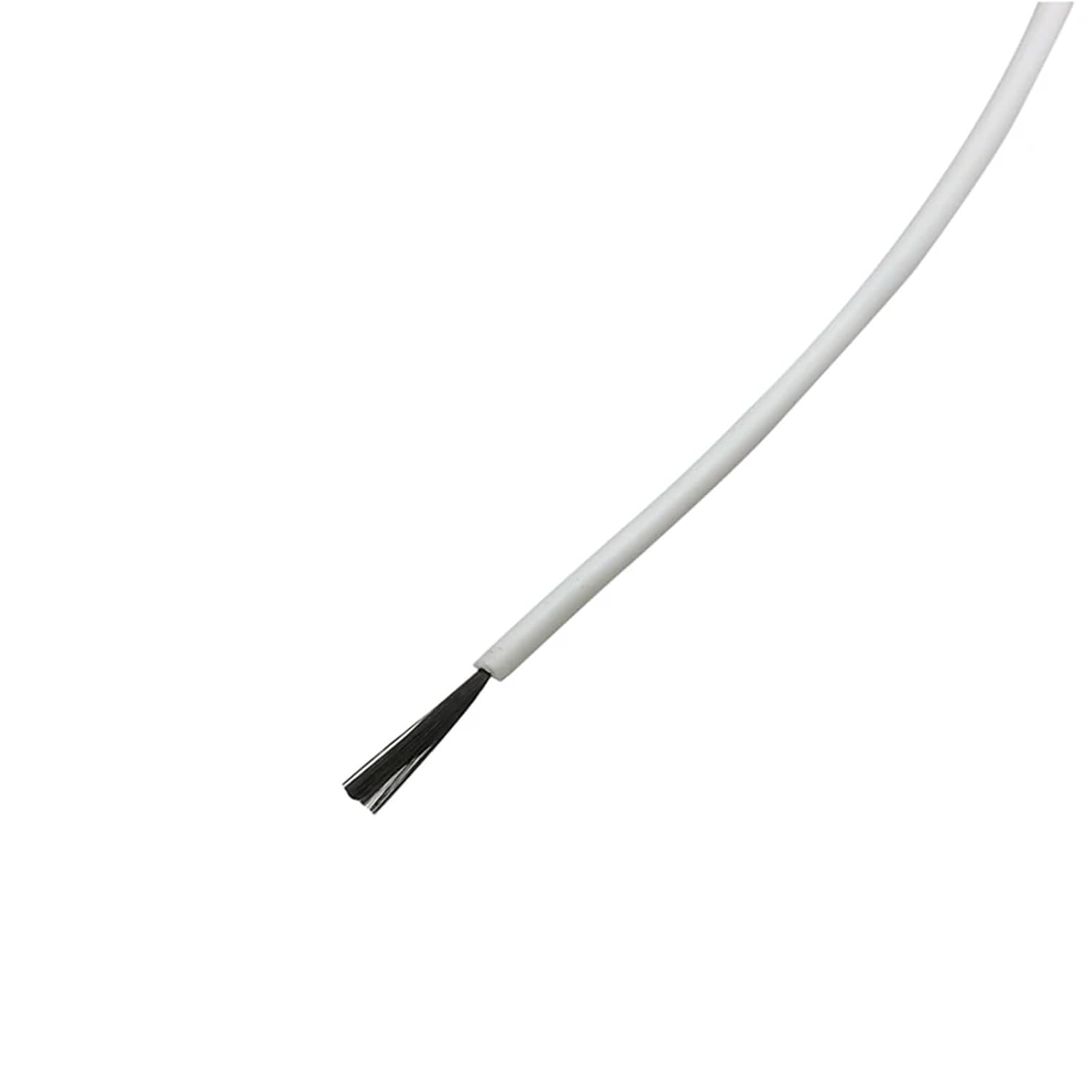

100m 1K 2K 3K 6K Silicone Rubber Insulated Infrared Underfloor Heating System Warm Floor Wire, Carbon Fiber Floor Heating Cable(6k 80ohm)

Pipe Heat Cables100m 1K 2K 3K 6K Silicone rubber insulated Infrared Underfloor Heating System Warm Floor Wire, Carbon Fiber Floor Heating CableProduct Name: Carbon fiber heating wireInsulating materials: Silicone rubberTemperature: 200 degrees celsiuslimitHeating conductor: 1K, 2K, 3K, 6KHigh voltage test: 3000VLeakage current: 0.05mA/mThe product can withstand the power of power: 15W/MDiameter: 1K: 2.0±0.2MM2K,3K, 6K :2.5±0.2MMcolors: White / Red(Random)Infrared wavelength: 8UM-18UMConductor resistance: 1K: 520± 10% / M2K: 220± 10% / M3K: 133± 10% / M6K: 80± 10% / MProduct Power Calculation:P=(U*U)/(L*R)For example: if use 5 meters 3K cable on 220V. the total power is (220*220)/(5*133)=72W, at this time, the power is about 14.4W/m.If you use 5 meters 2K cable on 220V, the total power is (220*220)/(5*220)= 44W, at this time, the power is 8.8W/m.Temperature:If power is about 5W/m, the heating temperature is about 40~50°C.If power is about 10W/m, the heating temperature is about 50~60°C.Product Advantages:1.High energy-efficient: Don't need other transmission medium, theelectrothermal conversion efficiency is above 98%.2.Comfortable and healthy: infrared floor heating, make the temperature uniformity,promote blood circulation.3.Easy to install: The carbon fiber heating wire cost a little, and has a long life span, an 1 roll 100meters1k / 2k / 3k /6k carbon fiber silicone rubber heating cable(White /Redcolors random send)1. Floor heating forHome and office:Homes, villas, hotels, office buildings, hospitals, shopping malls2. Floor heating forpublic areas:Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten3. Floor heating for large public facilities:Bus terminal, parking lot, airport, highways4. Floor heating forprofessional field:Botanical , greenhouse, laboratoryAnd other heating applications..etc...==========High-concerned chemical : NoneFloor Heating Part Type : Floor Heating CablesModel Number : CF-1/2/3/6-RType : Floor Heating PartsCertification : Type : InsulatedConductor Type : StrandedWorking voltage : < 300VCable type : 1K/2k/3k/6k carbon fiber heating cableColor : White/RedApplication : HeatingResistance : 520/220/133/80 Ohm/m ± 10%
