031-01267-001A Control Board Compatible with York Coleman 031-01972-000, P031-01267-001, 031-01266-000, 031-01140-702 Furnace Control Board

Part Number: Replace for 031-01267-001A, 031-01267-001, 031-01972-000, P031-01267-001, 031-01266-000, 031-01140-702, S1-03101267001, S1-03101972000 & More Compatible with Yo-rk Cole-man Lux-aire P031-01267-001 031-01267-001A Furnace Control board

• This Control Board is Designed to Replace Part #s 031-01267-001A, 031-01267-001, 031-01972-000, P031-01267-001, 031-01266-000, 031-01140-702, S1-03101267001, S1-03101972000 & More
• Application: Compatible with Yo-rk Cole-man Lux-aire P031-01267-001 031-01267-001A Furnace Control board
• The S1-33103010000 Control Board is an automatic gas interrupted ignition control. It uses a microprocessor to continuously monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. These controls incorporate system fault analysis for rapid gas flow shut-off. Additionally, they perform automatic ignition retry when a fault correction is sensed

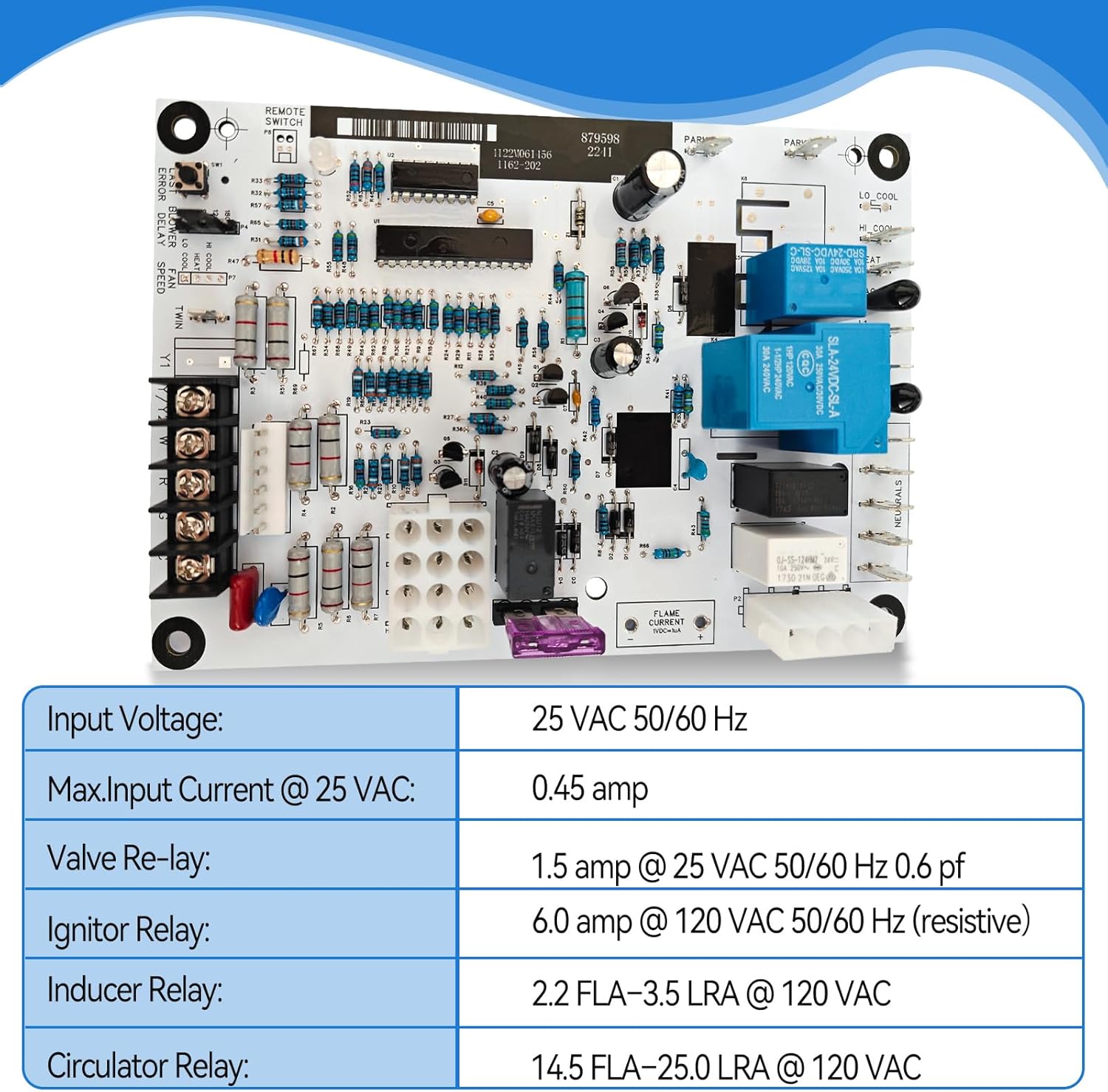

• Input Voltage: 25 VAC 50/60 Hz, Max. Input Current @ 25 VAC:0.45 amp, Valve Re-lay:1.5 amp @ 25 VAC 50/60 Hz 0.6 pf, Ignitor Relay: 6.0 amp @ 120 VAC 50/60 Hz (resistive), nducer Relay: 2.2 FLA–3.5 LRA @ 120 VAC, Circulator Relay: 14.5 FLA–25.0 LRA @ 120 VAC
• High quality is achieved through advanced, microprocessor-based high-precision PCB manufacturing, soldering and assembly technology. When installing and servicing the furnace, be cautious to avoid and control electrostatic discharge
